Conjugacy Class 2 of Group S4

Cable 1:[2, 1, 3, 4].

Disjoint cycle form: [[1, 2]].

Cable 2:[4, 2, 1, 3].

Disjoint cycle form: [[1, 4, 3]].

Example 2_1

CC2_CLASS = 2, example 1:
	Strut: [4, 3, 2, 1]. 	 Disjoint cycle form:  [[1, 4], [2, 3]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .361508 occurring in representation dim3a.

Example 2_2

CC2_CLASS = 2, example 2:
	Strut: [3, 4, 2, 1]. 	 Disjoint cycle form:  [[1, 3, 2, 4]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .25 occurring in representation dim3a.

Example 2_3

CC2_CLASS = 2, example 3:
	Strut: [3, 2, 1, 4]. 	 Disjoint cycle form:  [[1, 3]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .227791 occurring in representation dim3a.

Example 2_4

CC2_CLASS = 2, example 4:
	Strut: [2, 4, 1, 3]. 	 Disjoint cycle form:  [[1, 2, 4, 3]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .361508 occurring in representation dim3a.

Example 2_5

CC2_CLASS = 2, example 5:
	Strut: [2, 4, 3, 1]. 	 Disjoint cycle form:  [[1, 2, 4]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .152445 occurring in representation dim3a.

Example 2_6

CC2_CLASS = 2, example 6:
	Strut: [1, 3, 2, 4]. 	 Disjoint cycle form:  [[2, 3]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .420204 occurring in representation dim3a.

Example 2_7

CC2_CLASS = 2, example 7:
	Strut: [2, 1, 4, 3]. 	 Disjoint cycle form:  [[1, 2], [3, 4]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .25 occurring in representation dim3a.

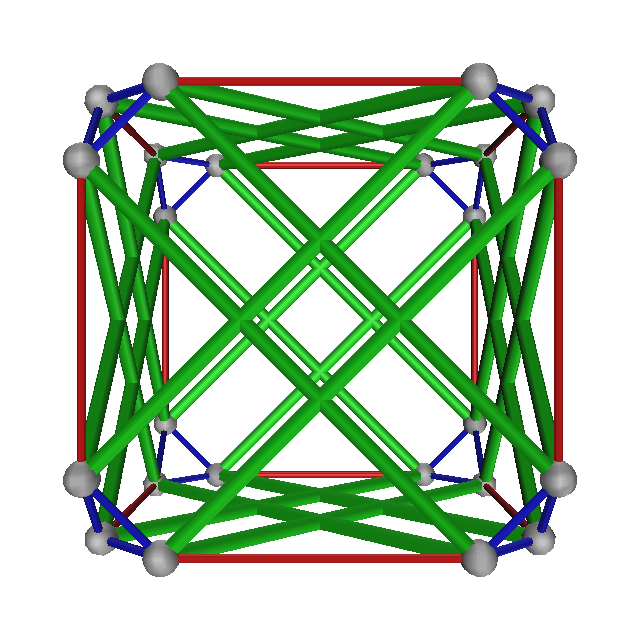

Example 2_8

CC2_CLASS = 2, example 8:
	Strut: [1, 3, 4, 2]. 	 Disjoint cycle form:  [[2, 3, 4]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .2 occurring in representation dim3a.

Example 2_9

CC2_CLASS = 2, example 9:
	Strut: [1, 2, 4, 3]. 	 Disjoint cycle form:  [[3, 4]].
	Cable 1: [2, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2]].
	Cable 2: [4, 2, 1, 3]. 	 Disjoint cycle form:  [[1, 4, 3]].
Smallest equilibrium strut stress w1_min is .219223 occurring in representation dim3a.
