# Conjugacy Class 4 of Group A5Z2

This page lists only examples which have no vertex overlaps for skew factor 1.

Cable 1:[2, 4, 3, 1, 5, 6, 7].
Disjoint cycle form: [[1, 2, 4]].
Cable 2:[1, 3, 2, 5, 4, 7, 6].
Disjoint cycle form: [[2, 3], [4, 5], [6, 7]].
• Example 4_3
CC2_CLASS = 4, example 3:
Strut: [1, 3, 5, 4, 2, 7, 6]. 	 Disjoint cycle form:  [[2, 3, 5], [6, 7]].
Cable 1: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Cable 2: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Smallest equilibrium strut stress w1_min is .063867 occurring in representation dim3br.

• Example 4_5
CC2_CLASS = 4, example 5:
Strut: [5, 4, 3, 2, 1, 6, 7]. 	 Disjoint cycle form:  [[1, 5], [2, 4]].
Cable 1: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Cable 2: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Smallest equilibrium strut stress w1_min is .101132 occurring in representation dim3br.

• Example 4_10
CC2_CLASS = 4, example 10:
Strut: [1, 4, 3, 5, 2, 6, 7]. 	 Disjoint cycle form:  [[2, 4, 5]].
Cable 1: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Cable 2: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Smallest equilibrium strut stress w1_min is .064382 occurring in representation dim3br.

• Example 4_18
CC2_CLASS = 4, example 18:
Strut: [2, 1, 5, 4, 3, 6, 7]. 	 Disjoint cycle form:  [[1, 2], [3, 5]].
Cable 1: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Cable 2: [4, 1, 3, 2, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 4, 2]].
Smallest equilibrium strut stress w1_min is .080077 occurring in representation dim3br.
POSSIBLE TIE involving representations: [dim3a, dim3br]

• Example 4_20
CC2_CLASS = 4, example 20:
Strut: [3, 1, 5, 2, 4, 7, 6]. 	 Disjoint cycle form:  [[1, 3, 5, 4, 2], [6, 7]].
Cable 1: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Cable 2: [4, 1, 3, 2, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 4, 2]].
Smallest equilibrium strut stress w1_min is .053949 occurring in representation dim3br.

• Example 4_22
CC2_CLASS = 4, example 22:
Strut: [2, 4, 5, 3, 1, 7, 6]. 	 Disjoint cycle form:  [[1, 2, 4, 3, 5], [6, 7]].
Cable 1: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Cable 2: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Smallest equilibrium strut stress w1_min is .059831 occurring in representation dim3br.

• Example 4_24
CC2_CLASS = 4, example 24:
Strut: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Cable 1: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Cable 2: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Smallest equilibrium strut stress w1_min is .044161 occurring in representation dim3br.

• Example 4_27
CC2_CLASS = 4, example 27:
Strut: [5, 2, 4, 3, 1, 6, 7]. 	 Disjoint cycle form:  [[1, 5], [3, 4]].
Cable 1: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Cable 2: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Smallest equilibrium strut stress w1_min is .094817 occurring in representation dim3br.

• Example 4_30
CC2_CLASS = 4, example 30:
Strut: [3, 2, 4, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 4]].
Cable 1: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Cable 2: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Smallest equilibrium strut stress w1_min is .054795 occurring in representation dim3br.

• Example 4_34
CC2_CLASS = 4, example 34:
Strut: [4, 5, 3, 1, 2, 6, 7]. 	 Disjoint cycle form:  [[1, 4], [2, 5]].
Cable 1: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Cable 2: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Smallest equilibrium strut stress w1_min is .111520 occurring in representation dim3br.

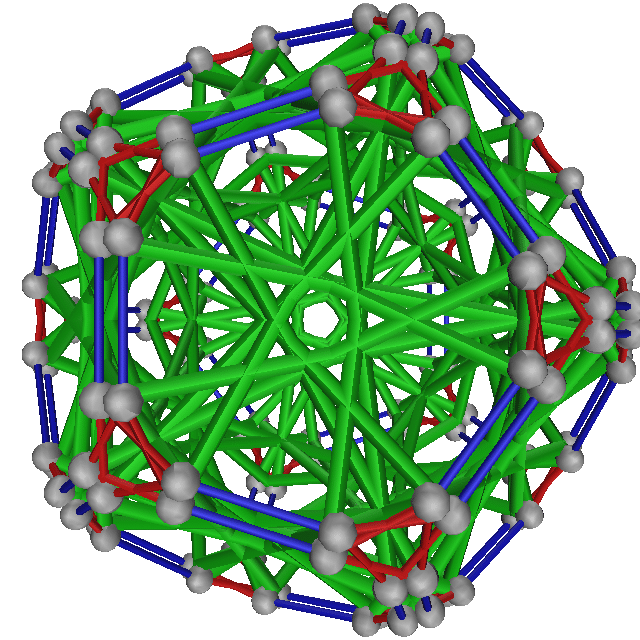

• Example 4_38
CC2_CLASS = 4, example 38:
Strut: [1, 2, 4, 5, 3, 6, 7]. 	 Disjoint cycle form:  [[3, 4, 5]].
Cable 1: [2, 4, 3, 1, 5, 6, 7]. 	 Disjoint cycle form:  [[1, 2, 4]].
Cable 2: [1, 3, 2, 5, 4, 7, 6]. 	 Disjoint cycle form:  [[2, 3], [4, 5], [6, 7]].
Smallest equilibrium strut stress w1_min is .096317 occurring in representation dim3br.
