# Conjugacy Class 18 of Group A5Z2

This page lists only examples which have no vertex overlaps for skew factor 1.

Cable 1:[4, 5, 1, 2, 3, 7, 6].
Disjoint cycle form: [[1, 4, 2, 5, 3], [6, 7]].
Cable 2:[3, 5, 2, 1, 4, 6, 7].
Disjoint cycle form: [[1, 3, 2, 5, 4]].
• Example 18_2
```CC2_CLASS = 18, example 2:
Strut: [3, 5, 1, 4, 2, 7, 6]. 	 Disjoint cycle form:  [[1, 3], [2, 5], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .445041 occurring in representation dim3ar.

```
```

```
• Example 18_6
```CC2_CLASS = 18, example 6:
Strut: [1, 3, 5, 4, 2, 7, 6]. 	 Disjoint cycle form:  [[2, 3, 5], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .548600 occurring in representation dim3ar.

```
```

```
• Example 18_8
```CC2_CLASS = 18, example 8:
Strut: [1, 2, 5, 3, 4, 7, 6]. 	 Disjoint cycle form:  [[3, 5, 4], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .182535 occurring in representation dim3ar.

```
```

```
• Example 18_9
```CC2_CLASS = 18, example 9:
Strut: [3, 2, 5, 4, 1, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 5]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .274051 occurring in representation dim3ar.

```
```

```
• Example 18_13
```CC2_CLASS = 18, example 13:
Strut: [3, 4, 2, 5, 1, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 4, 5]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .176556 occurring in representation dim3ar.

```
```

```
• Example 18_17
```CC2_CLASS = 18, example 17:
Strut: [2, 4, 3, 1, 5, 7, 6]. 	 Disjoint cycle form:  [[1, 2, 4], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .267143 occurring in representation dim3ar.

```
```

```
• Example 18_19
```CC2_CLASS = 18, example 19:
Strut: [2, 4, 1, 5, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 2, 4, 5, 3], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .180532 occurring in representation dim3ar.

```
```

```
• Example 18_21
```CC2_CLASS = 18, example 21:
Strut: [4, 3, 2, 1, 5, 7, 6]. 	 Disjoint cycle form:  [[1, 4], [2, 3], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .319405 occurring in representation dim3ar.

```
```

```
• Example 18_25
```CC2_CLASS = 18, example 25:
Strut: [1, 3, 4, 2, 5, 6, 7]. 	 Disjoint cycle form:  [[2, 3, 4]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .351486 occurring in representation dim3ar.

```
```

```

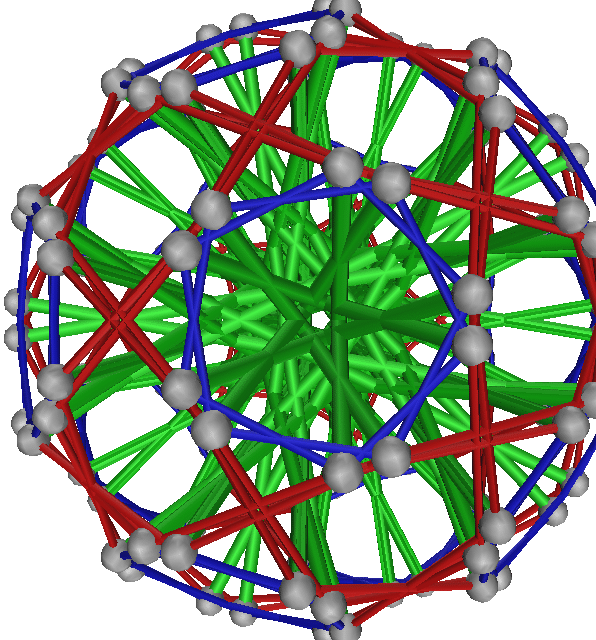

• Example 18_27
```CC2_CLASS = 18, example 27:
Strut: [5, 2, 4, 3, 1, 6, 7]. 	 Disjoint cycle form:  [[1, 5], [3, 4]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .313149 occurring in representation dim3ar.

```
```

```
• Example 18_28
```CC2_CLASS = 18, example 28:
Strut: [5, 4, 1, 3, 2, 7, 6]. 	 Disjoint cycle form:  [[1, 5, 2, 4, 3], [6, 7]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .210870 occurring in representation dim3ar.

```
```

```
• Example 18_30
```CC2_CLASS = 18, example 30:
Strut: [5, 2, 3, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 5, 4]].
Cable 1: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Cable 2: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Smallest equilibrium strut stress w1_min is .207752 occurring in representation dim3ar.

```
```

```

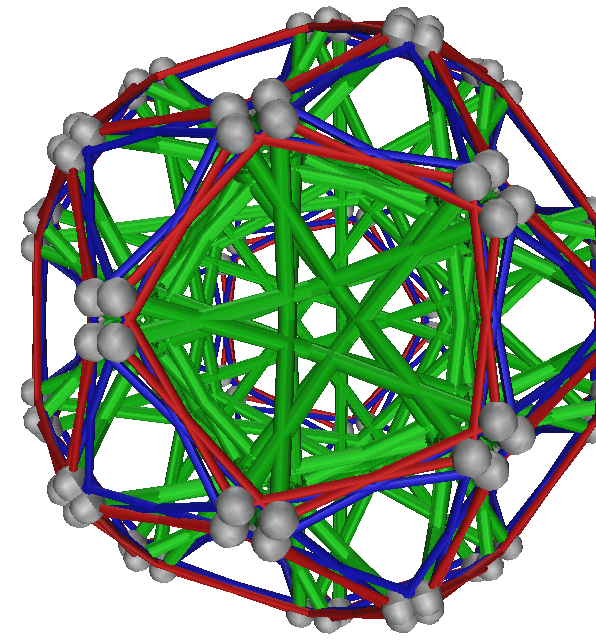

• Example 18_35
```CC2_CLASS = 18, example 35:
Strut: [4, 5, 3, 1, 2, 6, 7]. 	 Disjoint cycle form:  [[1, 4], [2, 5]].
Cable 1: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Cable 2: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Smallest equilibrium strut stress w1_min is .498195 occurring in representation dim3ar.

```
```

```
• Example 18_38
```CC2_CLASS = 18, example 38:
Strut: [4, 5, 2, 3, 1, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 3, 2, 5], [6, 7]].
Cable 1: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Cable 2: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Smallest equilibrium strut stress w1_min is .248864 occurring in representation dim3ar.

```
```

```
• Example 18_40
```CC2_CLASS = 18, example 40:
Strut: [2, 1, 3, 5, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 2], [4, 5]].
Cable 1: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Cable 2: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Smallest equilibrium strut stress w1_min is .323432 occurring in representation dim3ar.

```
```

```
• Example 18_41
```CC2_CLASS = 18, example 41:
Strut: [4, 5, 2, 3, 1, 6, 7]. 	 Disjoint cycle form:  [[1, 4, 3, 2, 5]].
Cable 1: [3, 5, 2, 1, 4, 6, 7]. 	 Disjoint cycle form:  [[1, 3, 2, 5, 4]].
Cable 2: [4, 5, 1, 2, 3, 7, 6]. 	 Disjoint cycle form:  [[1, 4, 2, 5, 3], [6, 7]].
Smallest equilibrium strut stress w1_min is .243769 occurring in representation dim3ar.

```
```

```
