Conjugacy Class 3 of Group A5

Cable 1:[2, 3, 5, 1, 4].
Disjoint cycle form: [[1, 2, 3, 5, 4]].
Cable 2:[4, 2, 1, 3, 5].
Disjoint cycle form: [[1, 4, 3]].
  • Example 3_1
    CC2_CLASS = 3, example 1:
    	Strut: [2, 3, 1, 4, 5]. 	 Disjoint cycle form:  [[1, 2, 3]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .139008 occurring in representation dim3b.







  • Example 3_2
    CC2_CLASS = 3, example 2:
    	Strut: [3, 4, 1, 2, 5]. 	 Disjoint cycle form:  [[1, 3], [2, 4]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .278960 occurring in representation dim3b.







  • Example 3_3
    CC2_CLASS = 3, example 3:
    	Strut: [4, 3, 1, 5, 2]. 	 Disjoint cycle form:  [[1, 4, 5, 2, 3]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .201519 occurring in representation dim3b.







  • Example 3_4
    CC2_CLASS = 3, example 4:
    	Strut: [1, 5, 4, 3, 2]. 	 Disjoint cycle form:  [[2, 5], [3, 4]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .195665 occurring in representation dim3b.

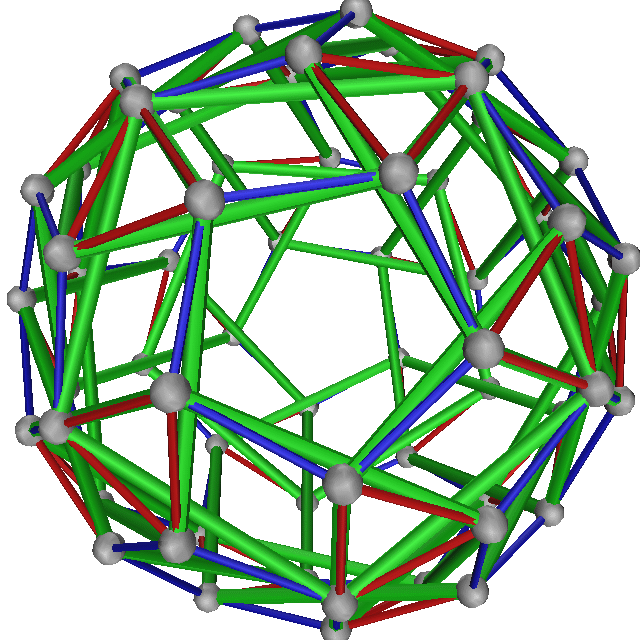

  • Example 3_5
    CC2_CLASS = 3, example 5:
    	Strut: [5, 1, 4, 2, 3]. 	 Disjoint cycle form:  [[1, 5, 3, 4, 2]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .527583 occurring in representation dim3b.







  • Example 3_6
    CC2_CLASS = 3, example 6:
    	Strut: [4, 3, 2, 1, 5]. 	 Disjoint cycle form:  [[1, 4], [2, 3]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .335197 occurring in representation dim3b.







  • Example 3_7
    CC2_CLASS = 3, example 7:
    	Strut: [3, 2, 1, 5, 4]. 	 Disjoint cycle form:  [[1, 3], [4, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .228394 occurring in representation dim3b.







  • Example 3_8
    CC2_CLASS = 3, example 8:
    	Strut: [1, 3, 2, 5, 4]. 	 Disjoint cycle form:  [[2, 3], [4, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is 1.095491 occurring in representation dim3b.







  • Example 3_9
    CC2_CLASS = 3, example 9:
    	Strut: [3, 2, 5, 4, 1]. 	 Disjoint cycle form:  [[1, 3, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .162920 occurring in representation dim3b.







  • Example 3_10
    CC2_CLASS = 3, example 10:
    	Strut: [1, 5, 3, 2, 4]. 	 Disjoint cycle form:  [[2, 5, 4]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .300229 occurring in representation dim3b.

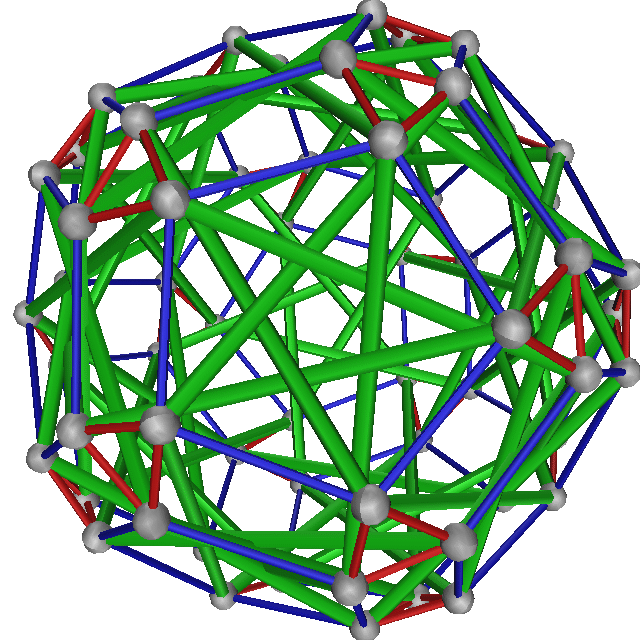

  • Example 3_11
    CC2_CLASS = 3, example 11:
    	Strut: [3, 4, 5, 1, 2]. 	 Disjoint cycle form:  [[1, 3, 5, 2, 4]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .297067 occurring in representation dim3b.

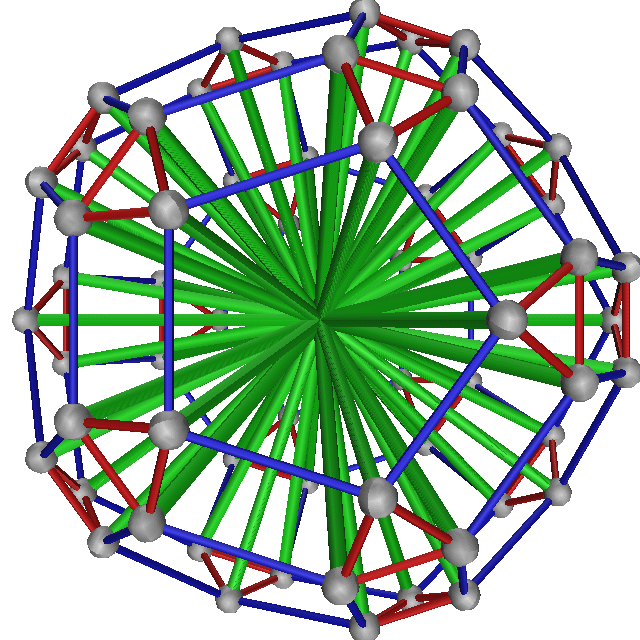

  • Example 3_12
    CC2_CLASS = 3, example 12:
    	Strut: [4, 5, 3, 1, 2]. 	 Disjoint cycle form:  [[1, 4], [2, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .190983 occurring in representation dim3b.







  • Example 3_13
    CC2_CLASS = 3, example 13:
    	Strut: [3, 1, 5, 2, 4]. 	 Disjoint cycle form:  [[1, 3, 5, 4, 2]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .113469 occurring in representation dim3b.







  • Example 3_14
    CC2_CLASS = 3, example 14:
    	Strut: [2, 1, 3, 5, 4]. 	 Disjoint cycle form:  [[1, 2], [4, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .254644 occurring in representation dim3b.







  • Example 3_15
    CC2_CLASS = 3, example 15:
    	Strut: [5, 4, 3, 2, 1]. 	 Disjoint cycle form:  [[1, 5], [2, 4]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .552786 occurring in representation dim3b.







  • Example 3_16
    CC2_CLASS = 3, example 16:
    	Strut: [1, 3, 5, 4, 2]. 	 Disjoint cycle form:  [[2, 3, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .190983 occurring in representation dim3b.







  • Example 3_17
    CC2_CLASS = 3, example 17:
    	Strut: [5, 3, 2, 4, 1]. 	 Disjoint cycle form:  [[1, 5], [2, 3]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .203802 occurring in representation dim3b.







  • Example 3_18
    CC2_CLASS = 3, example 18:
    	Strut: [4, 3, 5, 2, 1]. 	 Disjoint cycle form:  [[1, 4, 2, 3, 5]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .105572 occurring in representation dim3b.







  • Example 3_19
    CC2_CLASS = 3, example 19:
    	Strut: [5, 4, 1, 3, 2]. 	 Disjoint cycle form:  [[1, 5, 2, 4, 3]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .381966 occurring in representation dim3b.



    VERTEX OVERLAP: 2 other vertice(s) coincide with basepoint.
    DEGENERATE EDGES: 1 edge(s) of length 0.


  • Example 3_20
    CC2_CLASS = 3, example 20:
    	Strut: [5, 2, 3, 1, 4]. 	 Disjoint cycle form:  [[1, 5, 4]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .131521 occurring in representation dim3b.







  • Example 3_21
    CC2_CLASS = 3, example 21:
    	Strut: [2, 5, 1, 3, 4]. 	 Disjoint cycle form:  [[1, 2, 5, 4, 3]].
    	Cable 1: [2, 3, 5, 1, 4]. 	 Disjoint cycle form:  [[1, 2, 3, 5, 4]].
    	Cable 2: [4, 2, 1, 3, 5]. 	 Disjoint cycle form:  [[1, 4, 3]].
    Smallest equilibrium strut stress w1_min is .276393 occurring in representation dim3b.
